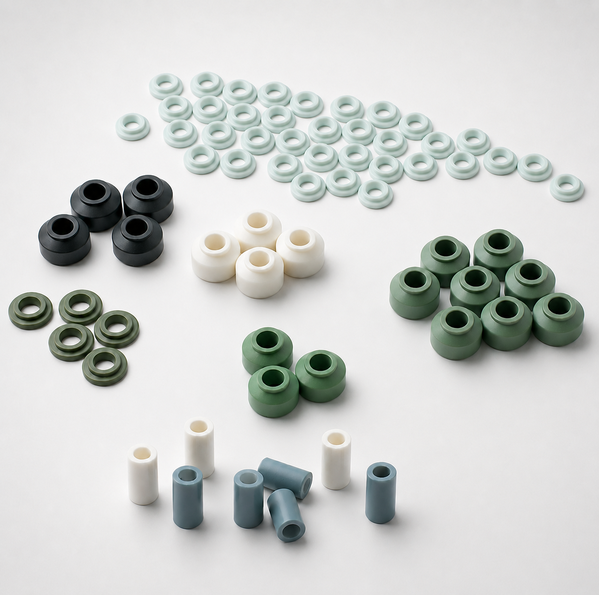

Steatite Ceramic
Steatite Ceramic
Steatite Ceramic |
|||||
| Product Code | Ceramic Material | Density | Bending Strength | CTE (30–300°C) | Color |
| CM083 | Steatite Ceramic | 2.85 g/cm3 | 170 MPa | 8.0±0.5 ×10-6/K | White, Light Blue, Green, Grey |
| 3YSZ | Zirconia Ceramic(ZrO2) | 5.95 g/cm3 | 500 MPa | 11.0±0.5 ×10-6/K | White, Blue |
Typical Applications
-
High-Power AC Compressor Terminals
-

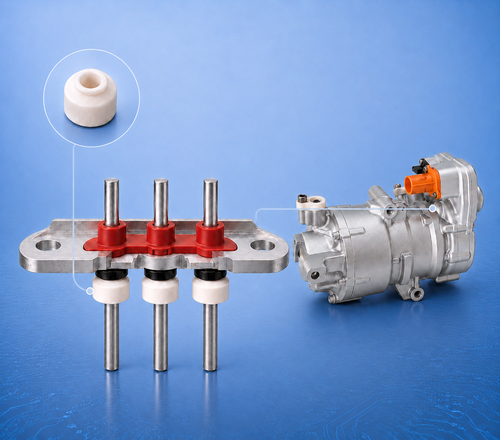

Automotive AC Compressor Terminals
-

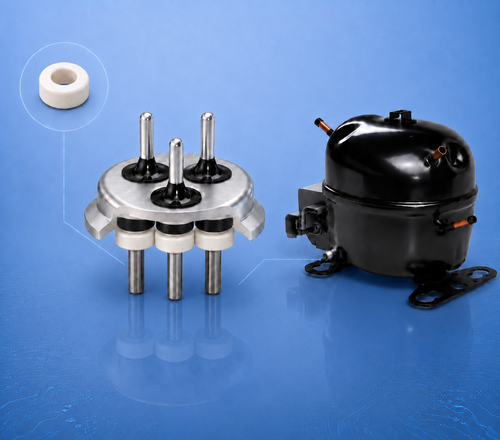

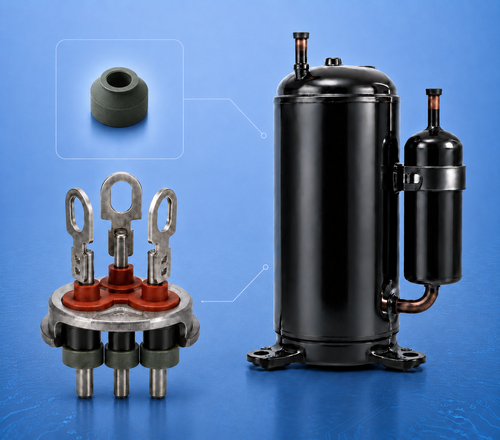

Refrigerator AC Compressor Terminals
-

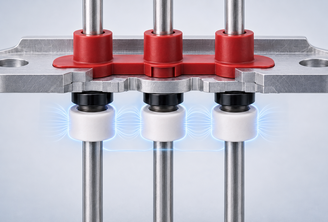

Reliable Electrical Insulation
Provides dependable electrical isolation and dielectric performance for compressor terminals and other electrical components.
-
Stable Thermal Performance
Controlled thermal expansion helps maintain dimensional stability during temperature changes and supports reliable component assembly.
-

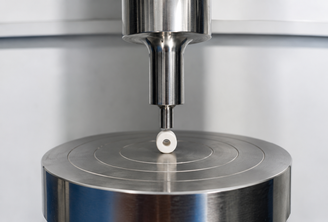

Hign Mechanical Strength
Good compressive and flexural strength helps ceramic components withstand assembly loads and mechanical stress during service.
-

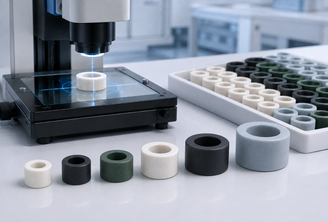

Custom Shapes & Dimensions
Custom shapes and dimensions are available to meet different terminal structures and application requirements while maintaining consistent product quality.
What Makes Sinopride Steatite Ceramic Reliable?
-
Material Formulation
A well-designed formulation provides the electrical, thermal, and mechanical properties required for different component designs and operating conditions.
-

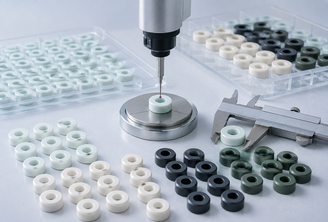

Forming & Dimensional Control
Controlled forming helps maintain part geometry an dimensional accuracy for reliable assembly and consistent production.
-
Controlled Sintering
Stable sintering conditions help develop a dense ceramic structure and consistent mechanical and electrical performance.
-

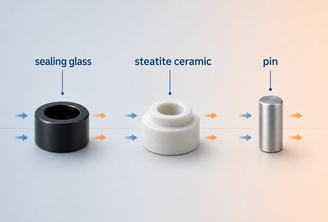

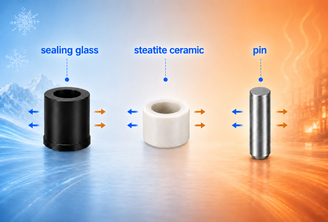

Thermal Expansion Matching
Appropriate thermal expansion compatibility with glass and metal components helps reduce stress during temperature changes.
